Description

The HOC CAT6 M-COPPER SFTP 305M OUTDOOR is a premium outdoor-grade LAN cable engineered for high-speed, interference-free data transmission in demanding environments. Built with 23AWG, 0.57mm M-Copper (CCA) conductors, this SF/UTP (Screened Foiled Twisted Pair) cable features both an aluminum foil shield and a braided CCAM shield to deliver exceptional noise immunity, making it ideal for CCTV, networking, and high-bandwidth enterprise infrastructures.

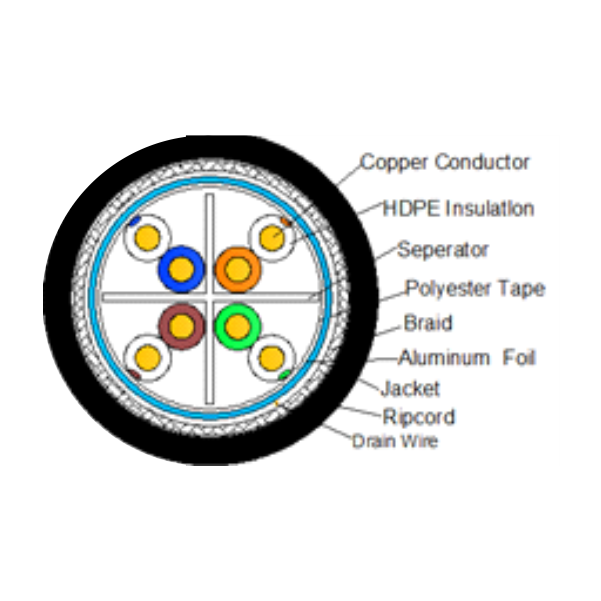

The cable’s robust construction includes HDPE insulation, LSZH filler, a polyester binder, and a durable LSZH outer jacket, providing superior resistance to UV, moisture, heat, and harsh outdoor conditions. Fully compliant with ANSI/EIA-568C.2, IEC 61156, and ISO/IEC 11801 standards, it supports 1000 Base-T, 10Gb Ethernet, ATM networks, and other high-speed applications with consistent electrical performance.

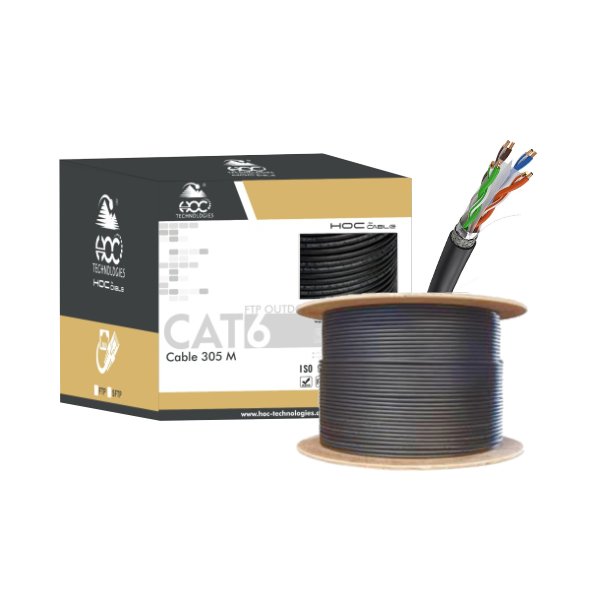

With excellent characteristics such as 100±15Ω impedance, high insulation resistance, and an NVP of 65%, this cable ensures stable connectivity over long distances. It also passes strict mechanical tests including cold bend, hot impact, and aging stability. Supplied in a 305M wooden drum, it is the perfect choice for professional outdoor installations requiring premium shielding and long-term reliability.
